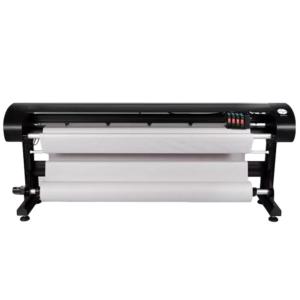

220V/50Hz Power Supply High Speed 240cm Max Width CAD Inkjet Plotter for CAD Printing

Place of Origin : Hubei, China

Brand Name : KAEMI or OEM

Price : $1,978.00/sets 1-4 sets

Condition : New

Applicable Industries : Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction works , Other, Advertising Company, All Other Fileds Need Cut Cutting or Printing

Weight (KG) : 100

Showroom Location : Turkey, Viet Nam, Bangladesh, Cambodia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Motor, Mother Board and Drivers

Warranty : 1 Year, 1 Year Warranty for Full Machine

Product Name : China Original Factory High Speed Inkjet Plotter CAD Inkjet Plotter

Printing Materials : White Paper,Kraft, etc

Cutting Size : 1650mm to 2200mm

Paper Size : 1700mm to 2300mm

Printing Tool : Universal HP45 Ink Box or Cartridge

Ink Cartridge Type : HP45 Ink Box or Cartridge 2 to 4 Printing Heads Available

Printing Resolution : 150-600DPI, Optional and Settable on Menu

Power Supply Voltage : 220V/50Hz

CAD File Format : HP-GL

Contact Now

240cm Max Width High Speed CAD Inkjet Plotter
Professional 220V/50Hz power supply high-speed inkjet plotter designed for CAD printing applications with maximum width capability of 240cm.
220V/50Hz Power Supply High Speed 240cm Max Width CAD Inkjet Plotter for CAD Printing
Key Features
  • High-speed servo control with full closed-loop positioning system
  • Advanced SOPC technology implementation
  • Independent output manager with automatic background queuing
  • Breakpoint resume functionality for reliable data transmission
  • Automatic online printing capability
  • 2, 3, or 4 printing heads configuration options
220V/50Hz Power Supply High Speed 240cm Max Width CAD Inkjet Plotter for CAD Printing
Technical Specifications
Type Double Spray Three Spray Four Spray
Product Model B-165-2/B-185-2/B-205-2 B-160-3/B-180-3/B-200-3 B-155-4/B-175-4/B-195-4
Printing Width (cm) 165/185/205 160/180/200 155/175/195
Feeding Paper Width (cm) 170/190/210 170/190/210 170/190/210
Printing Speed: Two-way high speed 93 m²/h; Two-way high speed 131 m²/h; Two-way high speed 163 m²/h
Printing Format: HPGL drawing language, compatible with domestic and foreign CAD software, special formats customizable
Print Resolution: 150-600 DPI
Nozzle Type: HP45A
Line Quality: Clear, smooth, seamless, optional 1-8 lines
Nozzle Cleaning: Automatic cleaning before printing
Paper Loading: Front heightening device supports paper rolls up to 28cm diameter
Paper Feeding: Hidden infrared precise feeding system, continuous 700 meters without deviation
Print Media: 40-80g ordinary roll printing paper; 80-250g single brown paper
Communication Interface: Network port, multiple computers can separately control printing
Power Supply: 220V/50Hz
Control Panel: Press key operation, simple, convenient, durable
Machine Structure: Die standardized metal structure, high precision and long life
Output Center: Supports manual or automatic printing, optional ink-saving mode, supports online printing
Product Gallery
220V/50Hz Power Supply High Speed 240cm Max Width CAD Inkjet Plotter for CAD Printing 220V/50Hz Power Supply High Speed 240cm Max Width CAD Inkjet Plotter for CAD Printing 220V/50Hz Power Supply High Speed 240cm Max Width CAD Inkjet Plotter for CAD Printing 220V/50Hz Power Supply High Speed 240cm Max Width CAD Inkjet Plotter for CAD Printing 220V/50Hz Power Supply High Speed 240cm Max Width CAD Inkjet Plotter for CAD Printing 220V/50Hz Power Supply High Speed 240cm Max Width CAD Inkjet Plotter for CAD Printing
Packaging & Shipping
220V/50Hz Power Supply High Speed 240cm Max Width CAD Inkjet Plotter for CAD Printing
About GEMEI
Since its establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining numerous software copyright and patent certificates. Based on profound understanding of China's garment, luggage and footwear industry, GM series cutting machines combine the essence of Chinese and foreign technologies, integrating world advanced technology with Chinese manufacturing advantages. Our innovative design differs from traditional domestic cutting machines, embodying the "good at core, simple in shape" design principle.
After introducing the first continuous drum cutter in central China, we successively developed specialized cutters for the luggage industry and continuous cutting garment sample cutters. GEMEI firmly grasps global manufacturing trends and maintains a research and development team composed of doctors, senior engineers, and other high-quality professionals, insisting that "innovation" remains the eternal driving force behind GEMEI's development.
220V/50Hz Power Supply High Speed 240cm Max Width CAD Inkjet Plotter for CAD Printing 220V/50Hz Power Supply High Speed 240cm Max Width CAD Inkjet Plotter for CAD Printing
Frequently Asked Questions
220V/50Hz Power Supply High Speed 240cm Max Width CAD Inkjet Plotter for CAD Printing
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of industry experience.
Q: How do you pack these products?
A: Products are typically packed in wooden cases according to export standards, with customization available based on your requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the field and can customize according to your specific requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance available via phone, email, or Skype.
Q: What is your lead time?
A: Standard products typically ship in 2-4 days, while custom orders require 5-7 days for completion.
